5556-5
Netcom’s 5556 is a digitally tunable filter covering the frequency range of 1.5 to 4MHz. The filter has been designed using
new commercially available high voltage drivers and a new generation CPLD, which allows for improved performance and
reduced cost while at the same time providing increased functionality. A control interference is provided to accept either parallel data and strobe or serial data, clock and strobe. The filter incorporates high voltage totem-pole drivers for the PIN diode bias voltage to minimize current draw from the 100 VDC supply.
- Specifications
- Performance
- Mechanical
- Ordering Information
- Evaluation
- More Details
Specifications
| Frequency Range | 1.5 to 4 MHz | ||
| Input / Output Impedance | 50 Ω | ||
| RF Power Rating | |||
| Inband, Continuous / Peak | 0.1 W / 0.4 W | ||
| Out-of-Band, Max | 5 W | ||
| Filter Bandwidth 3dB | 5% | ||
| Selectivity | |||
| 5.6 | |||
| Insertion Loss (typical) | 3.1 dB | ||
| Tuning Channels | 250 | ||
| Switching Speed, 90% RF Power | 150µsec | ||
| DC Inputs | |||
| +5 Volts (±0.5 Volts) | 250 mA | ||
| +100 Volts (-7, +25 Volts) | 0.5 mA | ||
| Temperature Range | -40 to +85°C | ||
| Control Interface | – Selectable 8 bit Parallel or Serial
– TTL and CMOS Compatible |
||
| Power Save Mode | Programmable | ||
| Dimensions | 2.30 x 1.40 x 0.55 inches | ||
Performance

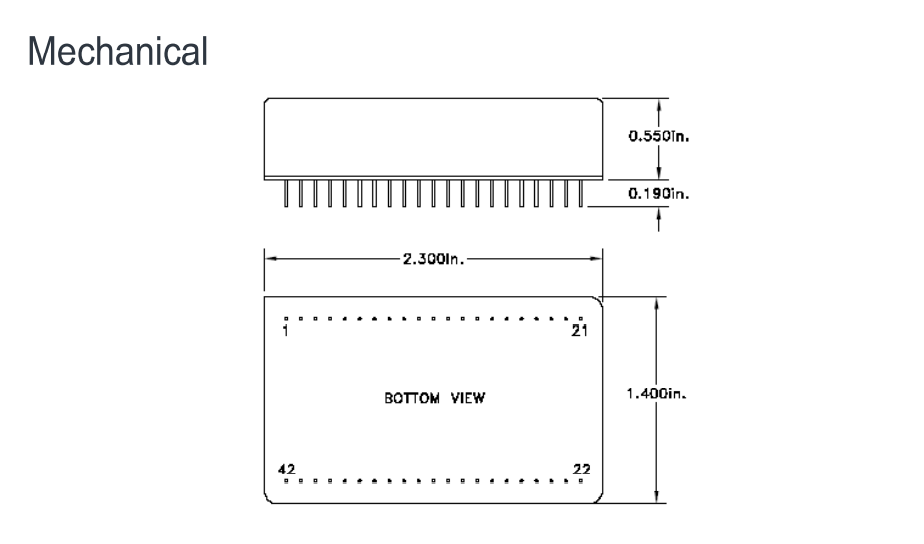

Mechanical

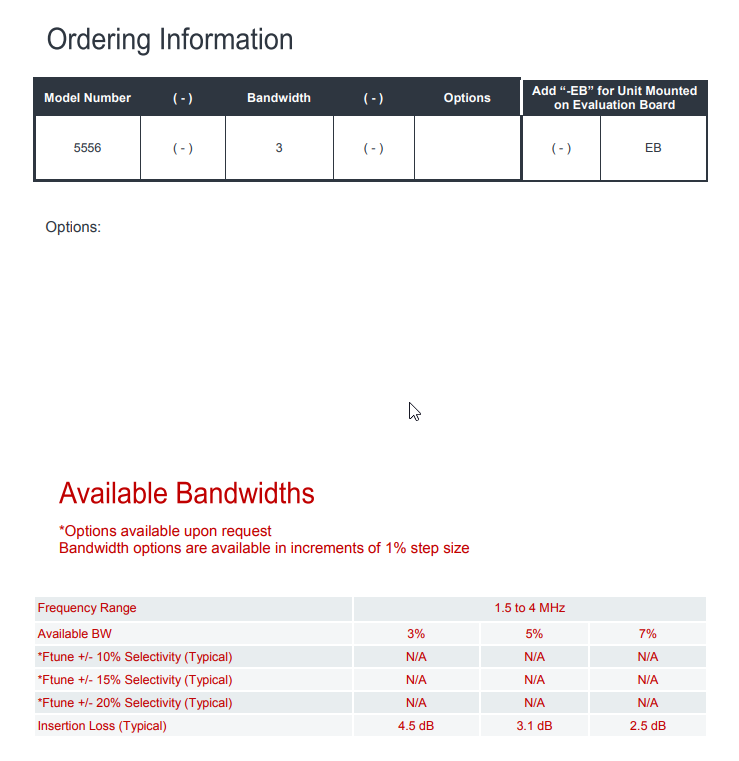

Ordering Information
Evaluation
More Details
