5560-5.5
The Netcom 5560-5.5 is a tunable bandpass filter covering 960 MHz to 1240 MHz. The centre frequency is set in 2 MHz steps and the 3 dB bandwidth is 5.5% of the tuned frequency. The filter settles on a new frequency in 6 microseconds.
This is the wide passband version of the 5560 family. The extra bandwidth buys lower loss: insertion loss is 4.1 dB typical, against 5.0 dB for the 3.3% version. IIP3 is also higher at +45 dBm. The trade is close in rejection, which is 20 dB at 10% away from the tuned frequency, 27 dB at 15% away and 31 dB at 20% away. Choose this version when the signal of interest is wide or the tuning needs some margin, and the 5560-3 when you need sharper skirts.
Control is by SPI or parallel interface. The part runs from 3.3 VDC, handles +30 dBm P1dB, and comes in a surface mount package measuring 1.50 x 1.50 x 0.25 inches. Operating range is -40 to +85 °C.
- Specifications
- Performance

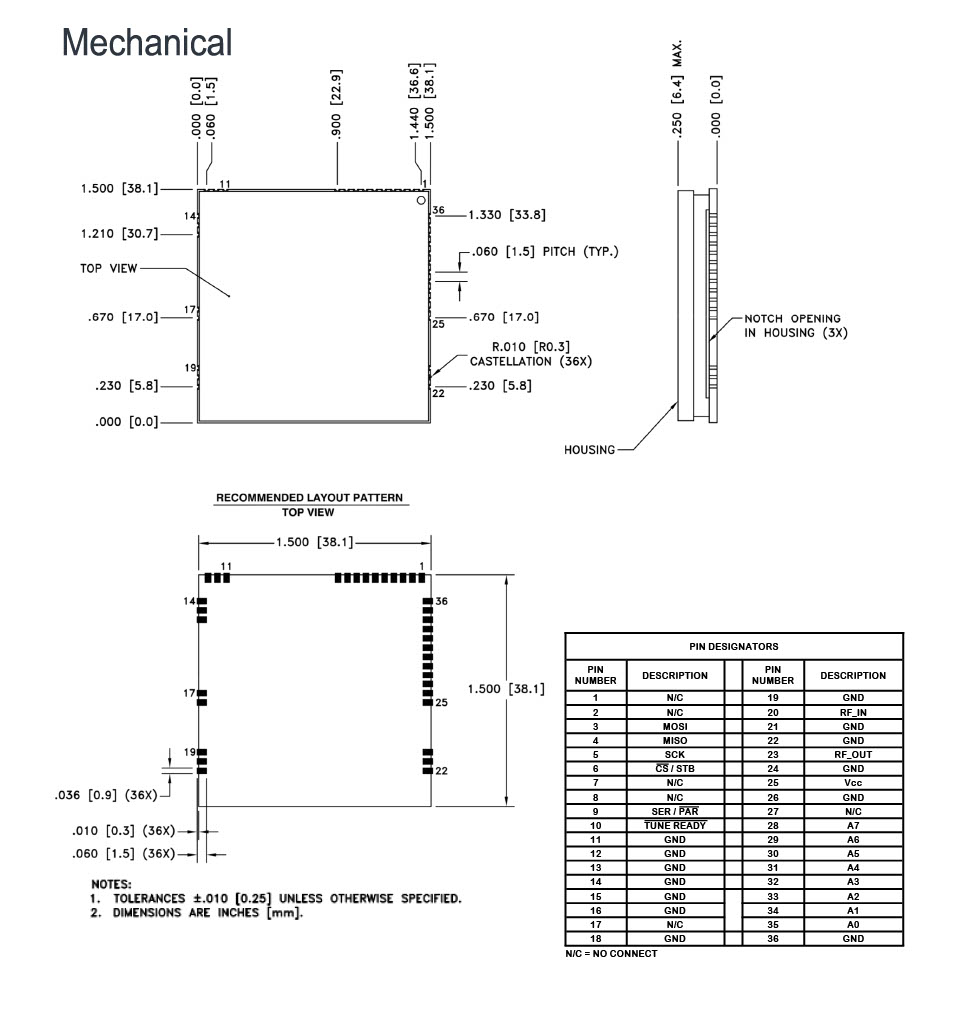

- Mechanical
- Ordering Information

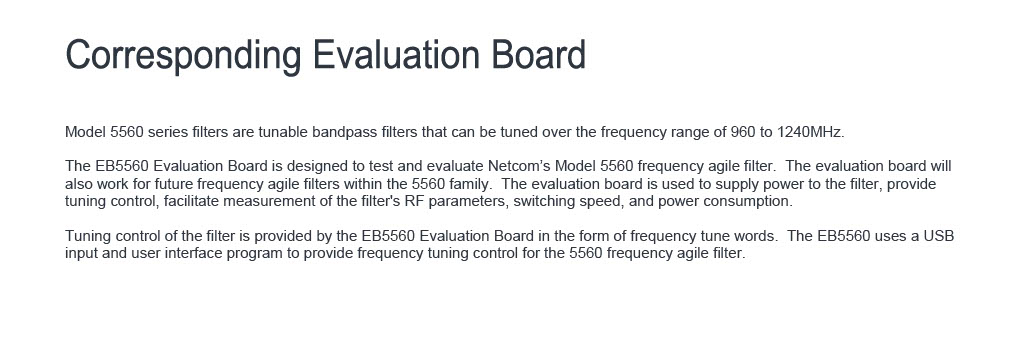

- Evaluation

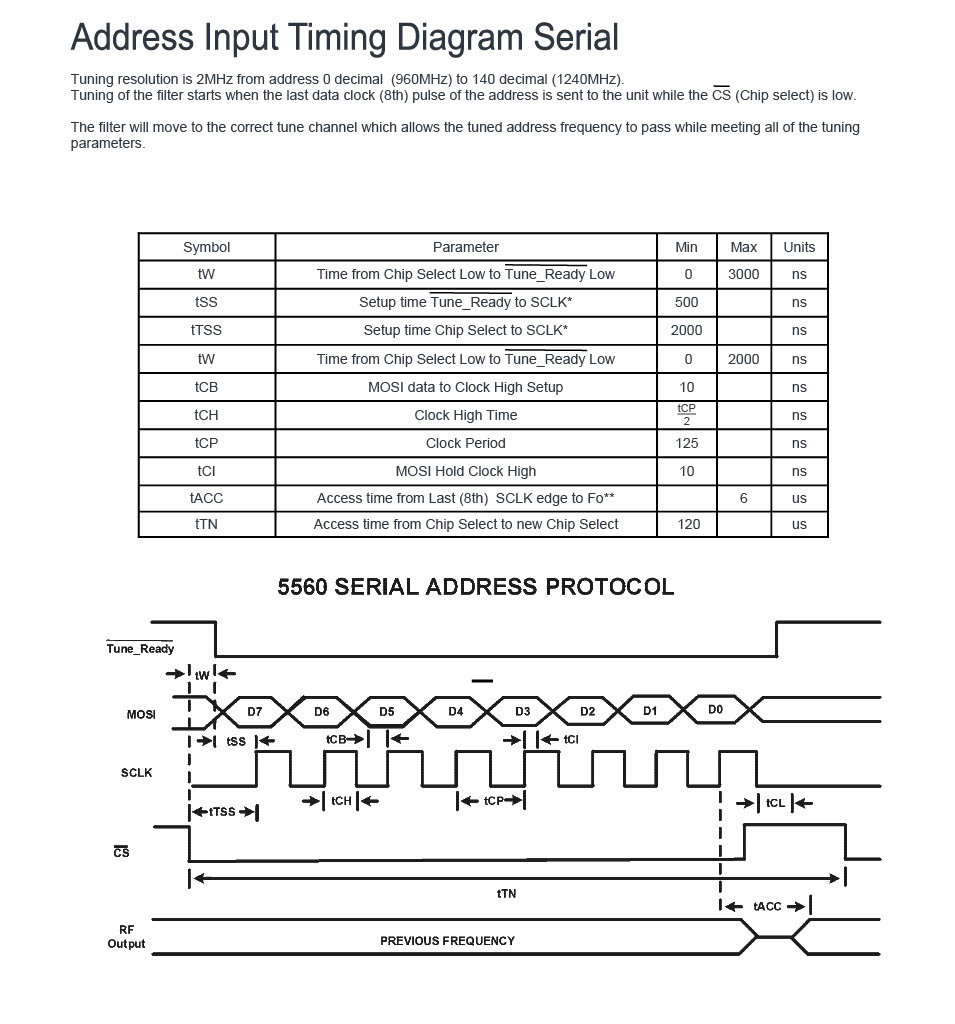

- Serial Address
- More Details
| Frequency Range | 960 to 1240 MHz |
| Available BW | 5.5% |
| *Ftune +/- 10% Rejection (Typical) | < -20 dB |
| *Ftune +/- 15% Rejection (Typical) | < -27 dB |
| *Ftune +/- 20% Rejection (Typical) | < -31 dB |
| Insertion Loss (Typical) | 4.1 dB |
| Impedance (Input /Output) | 50 Ω |
| Tuning Speed | 6 µs |
| Tuning Resolution* | 2 MHz |
| P1dB | +30 dBm |
| IIP3 | +45 dBm |
| DC Power | |
| DC Voltage | 3.3 Volts |
| DC Current Max | 3.3 VDC +/- 0.3 VDC mA |
| Operating Temperature Range | -40 to +85°C |
| Control Interface | -SPI or Parallel |
| Dimensions [L x W x H] | 1.50 x 1.50 x 0.25 inches
38.10 x 38.10 x 6.40 mm |
Coming soon
