5670-7-C

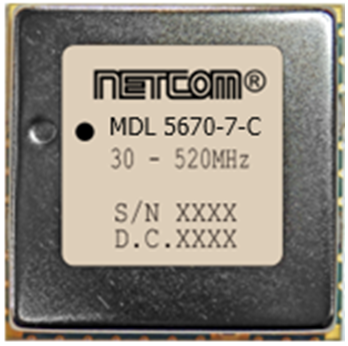

Netcom’s 5670-7-C is a tunable bandpass filter covering 30 MHz to 520 MHz frequency range.

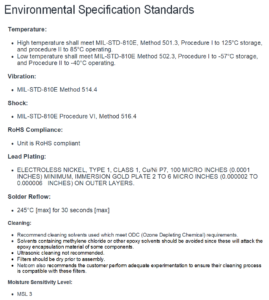

The filter has been designed using three bands of tunable filters. This tri-band filter is offered in a small integrated SMT package to support applications where compact design, power requirements, and board layout flexibility are important. It meets the vibration and shock requirements of systems used in ground-mobile and airborne environments.
- Specifications

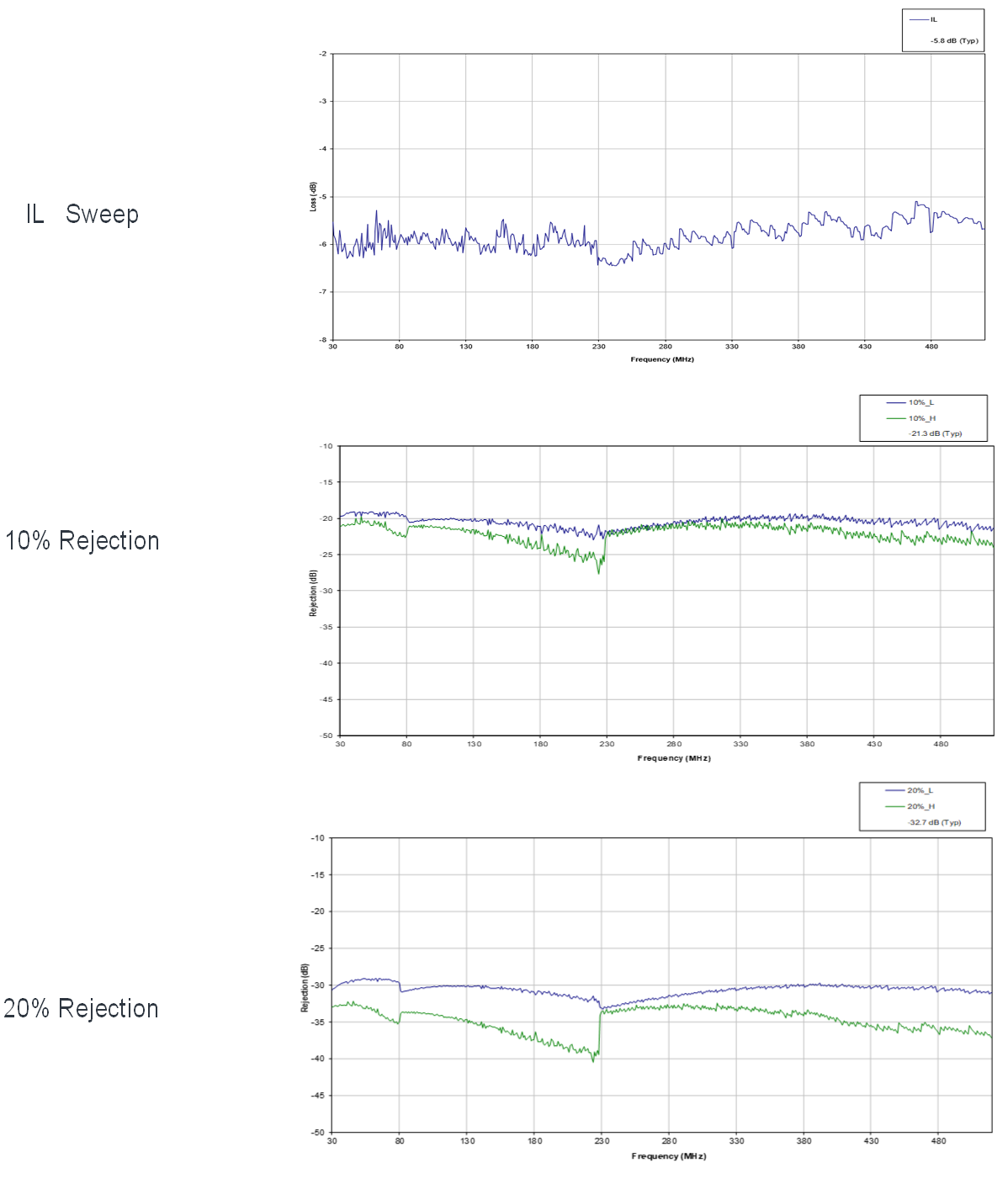

- Performance
- Mechanical

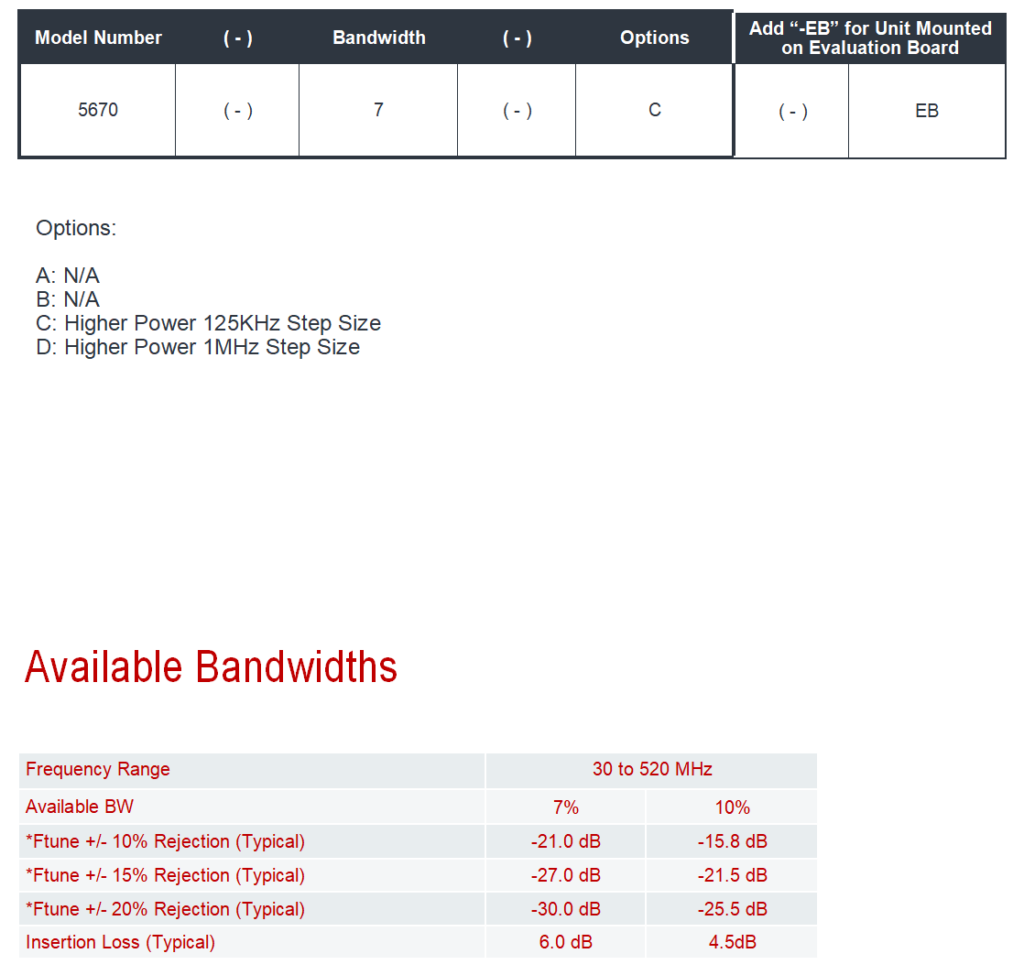

- Ordering Information
- Evaluation

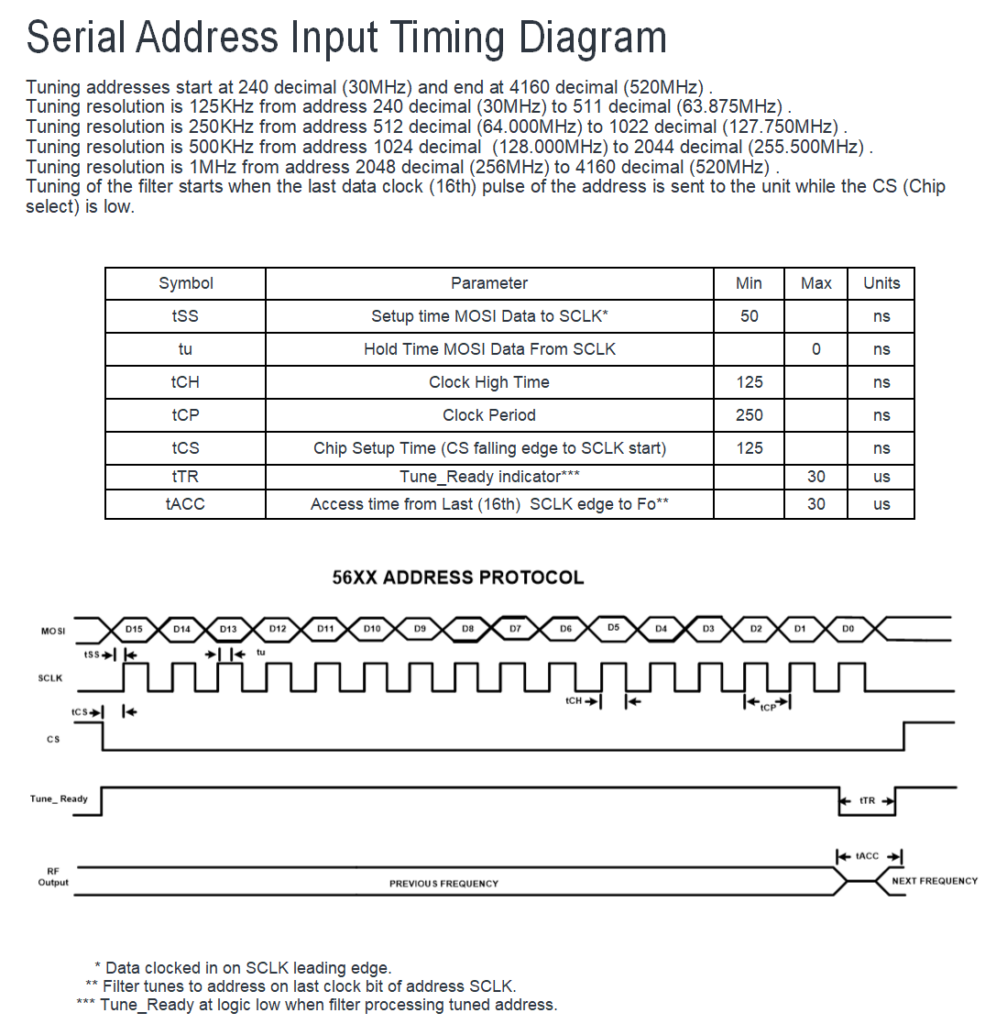

- Serial Address
- More Details
Frequency Range | 30 to 520 MHz |
Available BW | 7% |
*Ftune ± 10% Rejection (Typical) | -21 dB |
*Ftune ± 15% Rejection (Typical) | -27 dB |
*Ftune ± 20% Rejection (Typical) | -30 dB |
Insertion Loss (Typical) | 6.0 dB |
Impedance (Input /Output) | 50 Ω |
Tuning Speed | < 30 µs |
Tuning Resolution | 125 KHz |
Max RF Power Handling | 1.25 Watt |
Max Out Of Band RF Power Handling | 5 Watt |
IIP3 (+18dBm input) | +42 dBm |
Noise Figure | < 1 dB above Insertion Loss |
DC Power | |
DC Voltage | 3.3 VDC +/- 0.3 VDC |
DC Current Max | 30 mA |
Operating Temperature Range | -40 to +85°C |
Control Interface | – SPI Serial Input |
Dimensions | 1.20 x 1.20 x 0.25 inches
30.60 x 30.60 x 6.35 mm |
