5715
Netcom’s 5715 digitally tunable filter is an industry leading design specifically targeting co-site mitigation applications. This filter will reduce the reverse inter-modulation products and harmonics synchronously with the selected “hop” set as commanded by the host radio. It can operate both in transmit or receive modes of operation. Voltage regulation, conducted emissions and surge protection are accomplished with a custom modular power supply design.
Control is implemented using Programmable Logic Device (PLD) and on board EEPROMs. The logic signals from the host radio (which specify the tune frequency) are translated to the uniquely calibrated tune word residing in the EEPROMs. This output word provides the fine ttuning control for the filter’s center frequency, while the Q is kept constant across the spectrum. Special mechanical consideration has been given to limiting the temperature rise of the
components; components have also been significantly de-rated for improved reliability.
Environmental Stress Screening (ESS) is performed on each unit, prior to shipment.
- Specifications
- Performance

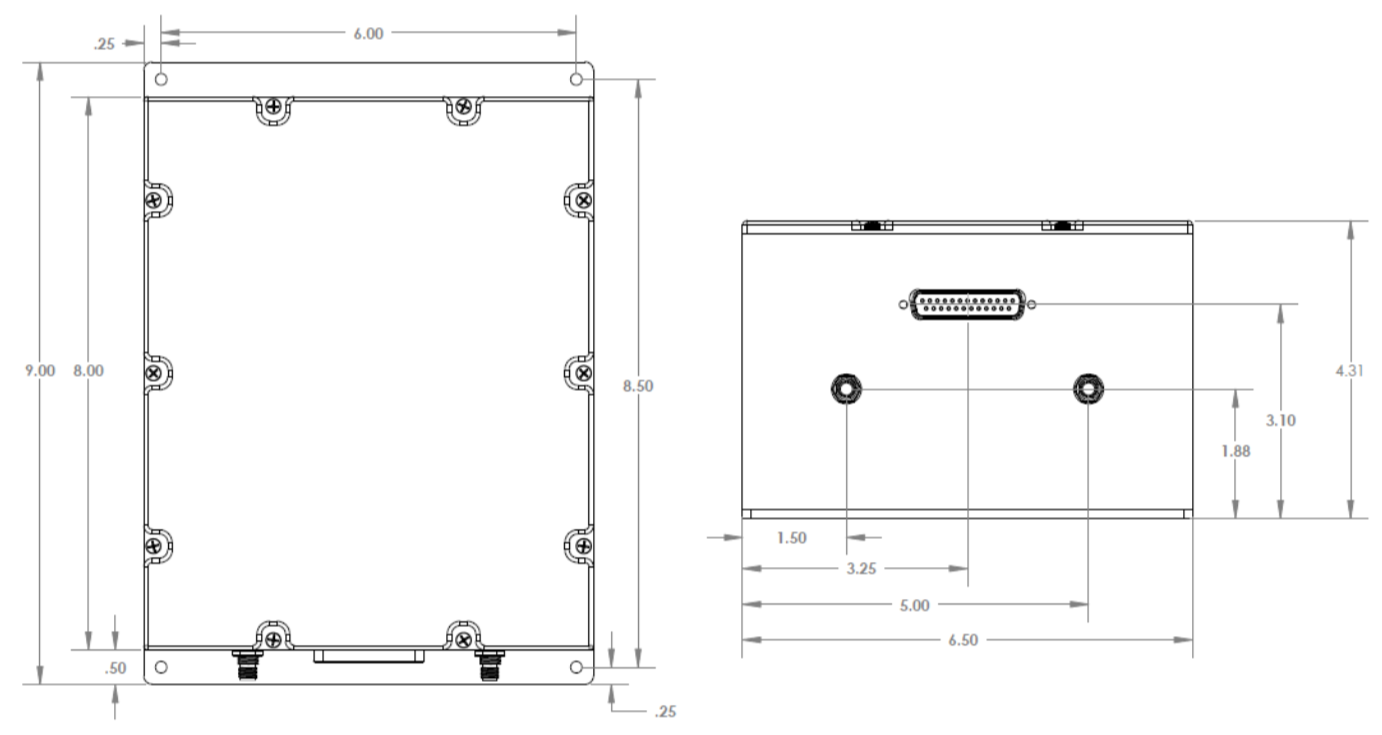

- Mechanical
- Ordering Information
| Frequency Range | 30 to 90 MHz | ||
| Input / Output Impedance | 50 Ω | ||
| RF Power Rating | |||
| Inband, Continuous / Peak | 40 W / 80 W | ||
| Out-of-Band, Max | 100 W | ||
| Filter Bandwidth 3dB | 3% | 5% | 7% |
| Selectivity | |||
| Shape Factor 30/3dB | 6.0 | 6.0 | 6.0 |
| Insertion Loss | 3.5 dB | 2.5 dB | 2.0 dB |
| Filter Tuning Channels | 401 | ||
| Radio Interface Channels (30 — 90MHz) | 10kHz Increments | ||
| Switching Speed, 90% RF Power | <70 µsec | ||
| DC Input | |||
| +26V DC; (±6 Volts) | 1A | ||
| Mil-Std-461D Compliant | Yes | ||
| Temperature Range | -40 to +75°C | ||
| Control Interface | ARC-210 | ||
| (Other Interface Options Available Upon Request) | |||
| Dimensions | 9.00 x 6.00 x 4.31 inches | ||
| Model Number | – | Bandwidth | – | Option |
|---|---|---|---|---|
| 5715 | 3 | Leave blank for selectable interface S: Serial Interface Only P: Parallel Interface Only |
||
| 5 | ||||
| 7 |
