5776-10
The Netcom 5776-10 is a tunable bandpass filter covering 470 MHz to 870 MHz in the UHF band. The centre frequency is set in 1 MHz steps and the 3 dB bandwidth is 10% of the tuned frequency. The filter settles on a new frequency in 10 microseconds.
It is part of the TunePro 2W series and handles 2 watts (+33 dBm P1dB) in a 0.575 x 0.575 inch surface mount package. IIP3 is +45 dBm and insertion loss is 4.6 dB typical. Noise figure is less than 0.5 dB above the insertion loss. Rejection is 10 dB at 10% away from the tuned frequency, 15 dB at 15% away and 19 dB at 20% away. Control is by SPI serial interface. The part runs from 3.3 VDC at 30 mA and works from -40 to +85 °C.
Getting a 470 MHz filter into a 0.575 inch square package is the point of it: at these frequencies a conventional tunable filter is much larger, so the 5776-10 fits into handheld and portable equipment where a UHF preselector normally will not go.
- Specifications
- Performance
- Mechanical

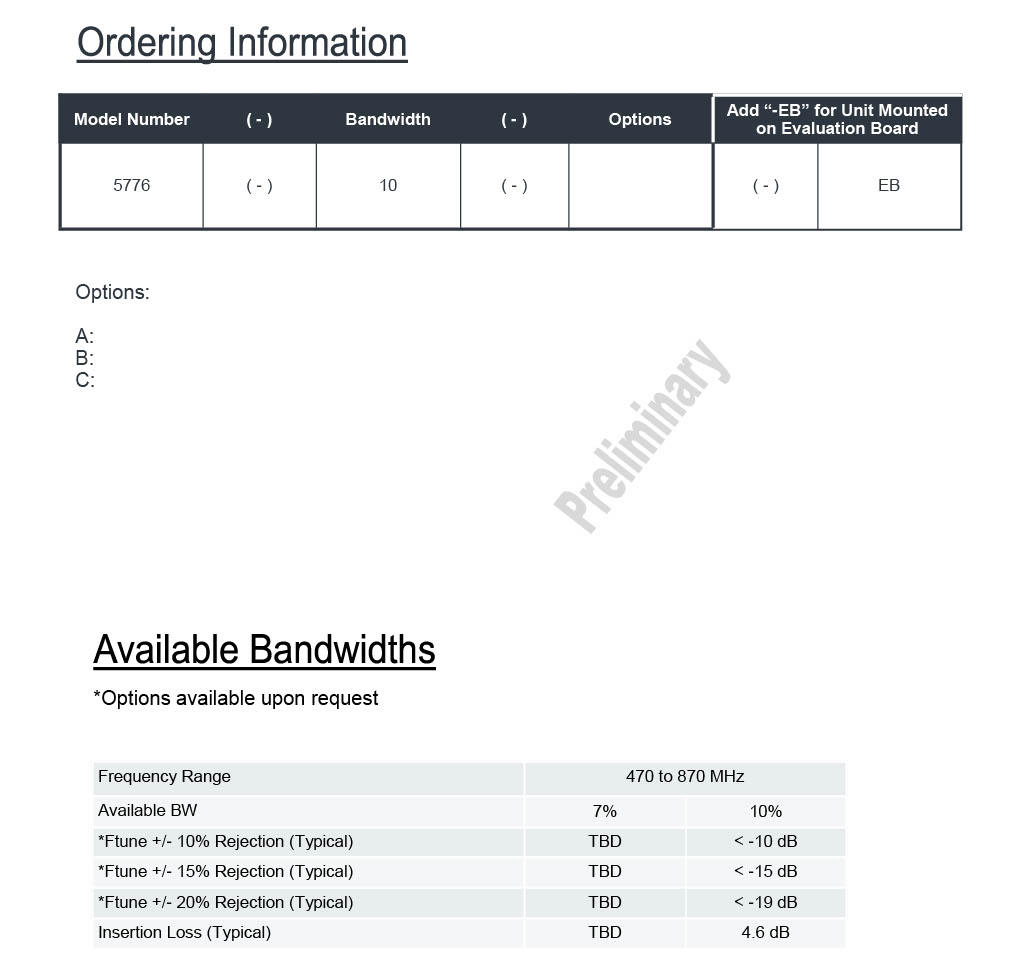

- Ordering Information
- Evaluation
- Serial Address
- More Details
| Frequency Range | 470 to 870 MHz |
| Available BW | 10% |
| *Ftune +/- 10% Rejection (Typical) | < -10 dB |
| *Ftune +/- 15% Rejection (Typical) | < -15 dB |
| *Ftune +/- 20% Rejection (Typical) | < -19 dB |
| Insertion Loss (Typical) | 4.6 dB |
| Impedance (Input /Output) | 50 Ω |
| Tuning Speed | 10 µs |
| Tuning Resolution* | 1 MHz |
| P1dB | +33 dBm |
| IIP3 | +45 dBm |
| Noise Figure | < 0.5 dB above Insertion Loss |
| DC Power | |
| DC Voltage | 3.3 VDC (+0.3 VDC / – 1.0 VDC |
| DC Current Max | 30 mA |
| Operating Temperature Range | -40 to +85°C |
| Control Interface | – SPI Serial Interface |
| Dimensions [L x W x H] | 0.575 x 0.575 x 0.108 inches
14.605 x 14.605 x 2.7 mm |
