5778-9.5
The Netcom 5778-9.5 is a tunable bandpass filter covering 900 MHz to 1300 MHz, the lower part of the L-band. The centre frequency is set in 1 MHz steps and the 3 dB bandwidth is 9.5% of the tuned frequency. The filter settles on a new frequency in 10 microseconds.
It is part of the TunePro 2W series and handles 2 watts (+33 dBm P1dB) in a 0.575 x 0.575 inch surface mount package. IIP3 is +45 dBm and insertion loss is 4.5 dB typical. Noise figure is less than 0.5 dB above the insertion loss. Rejection is 10 dB at 10% away from the tuned frequency, 15 dB at 15% away and 18 dB at 20% away. Control is by SPI serial interface. The part runs from 3.3 VDC at 30 mA and works from -40 to +85 °C.
At 9.5% the passband is wide, so this is a preselector rather than a channel filter. It passes a whole wideband or hopping signal without reshaping it, while keeping strong out of band energy away from the receiver front end.
- Specifications
- Performance

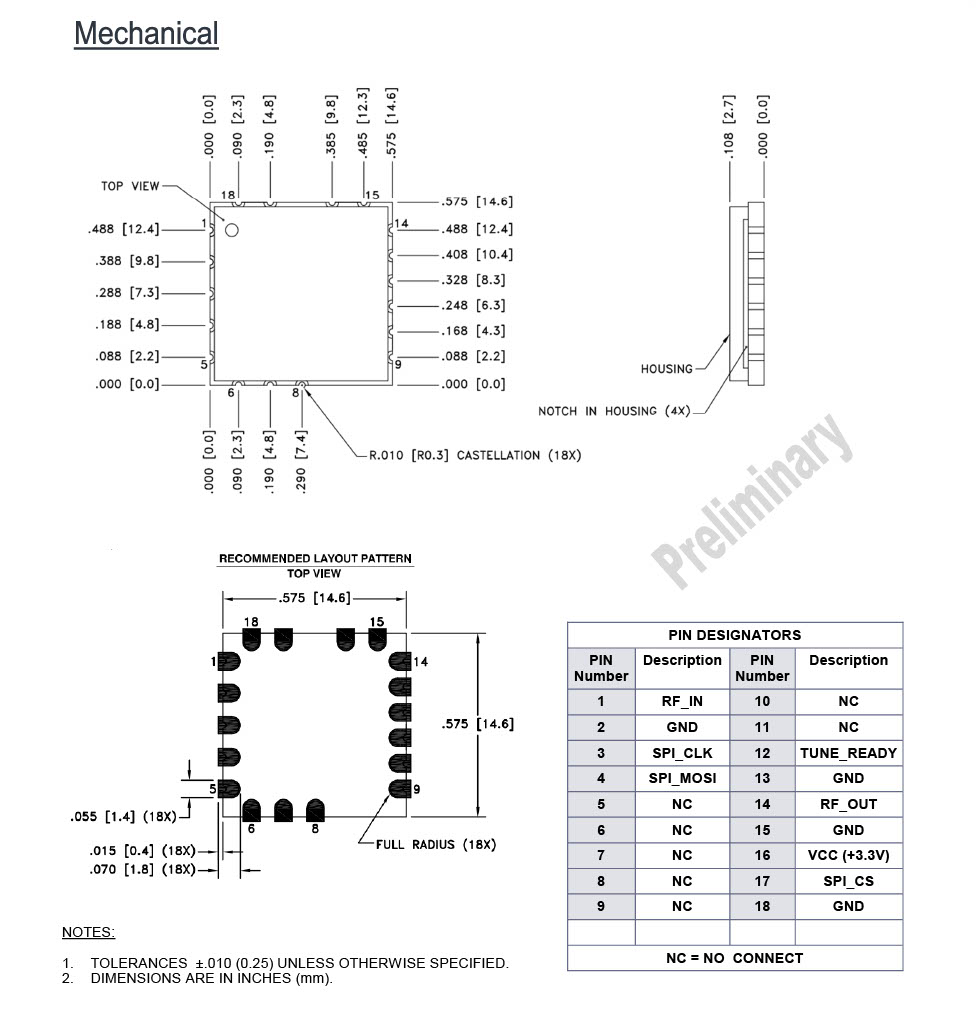

- Mechanical

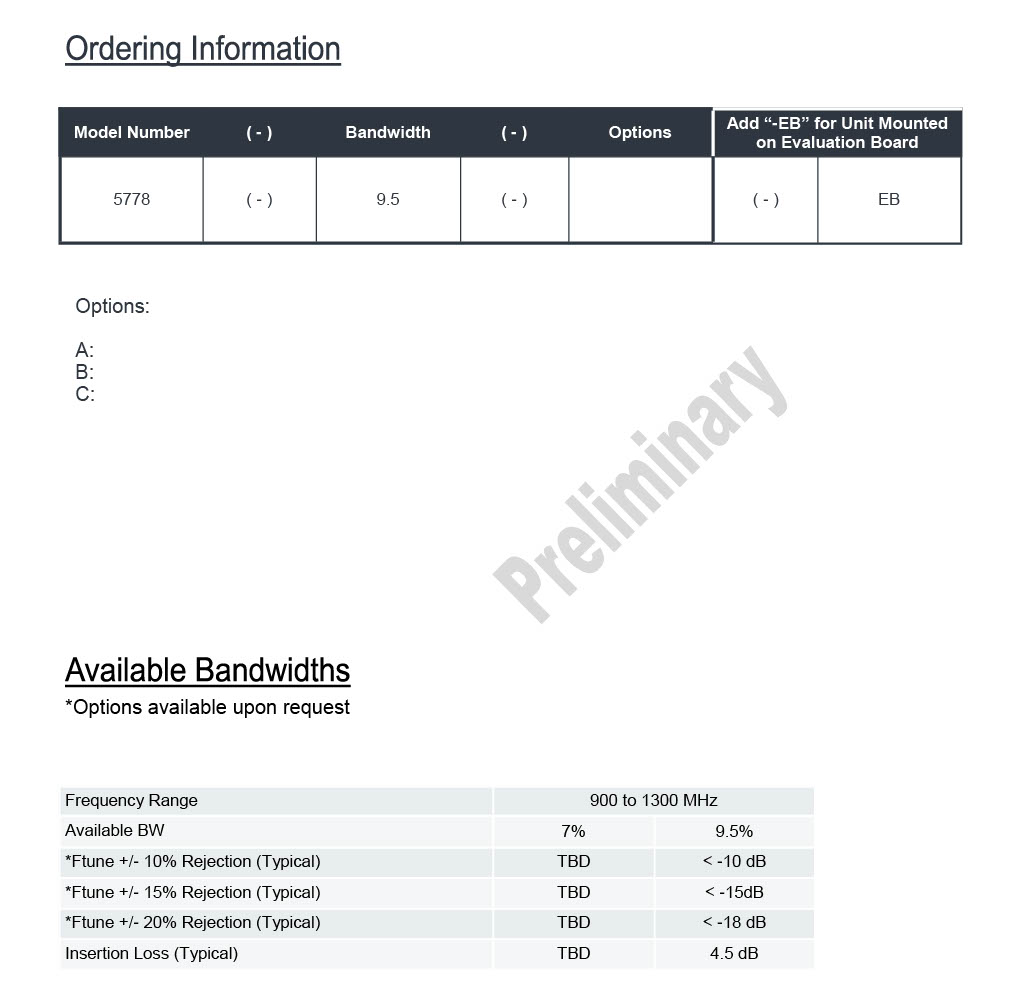

- Ordering Information

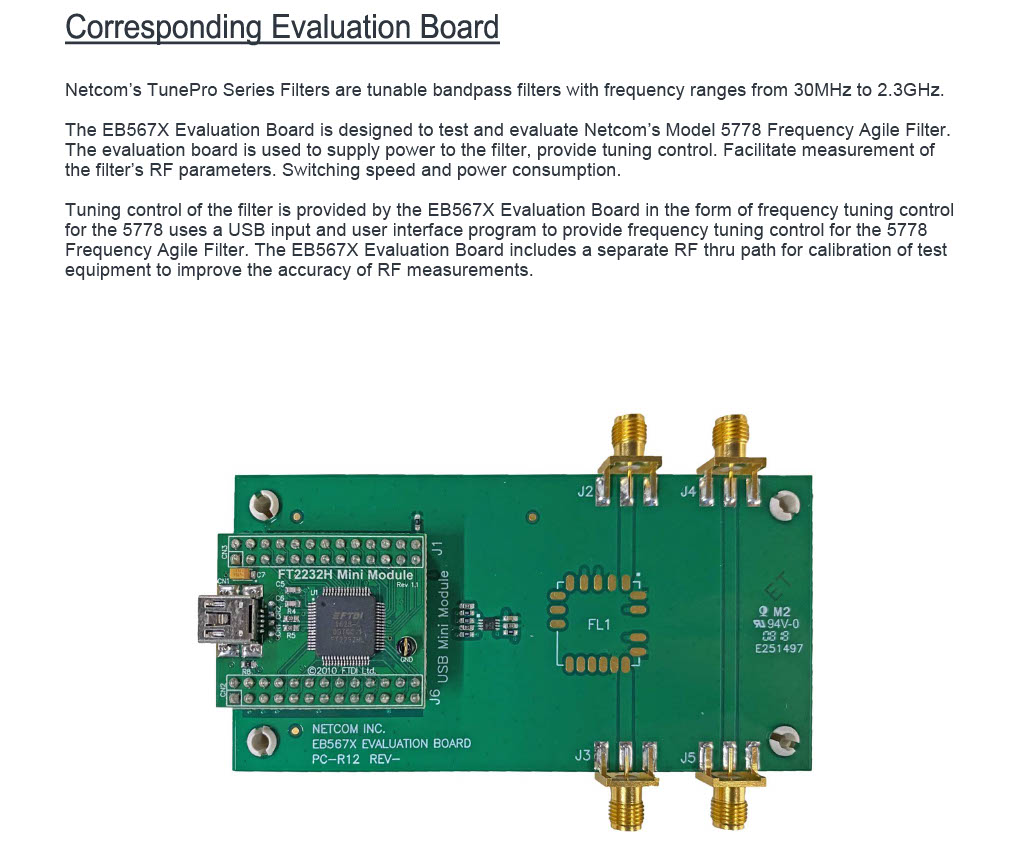

- Evaluation

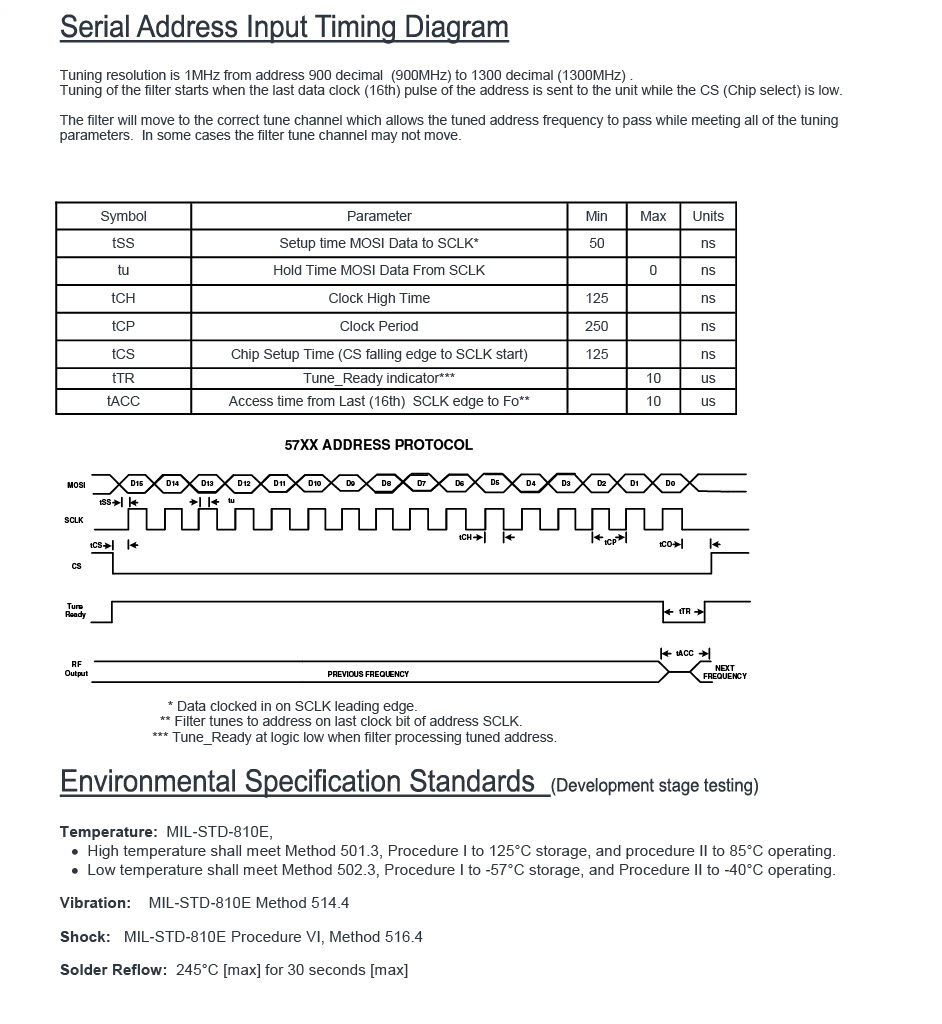

- Serial Address
- More Details
| Frequency Range | 900 to 1300 MHz |
| Available BW | 9.5% |
| *Ftune +/- 10% Rejection (Typical) | < -10 dB |
| *Ftune +/- 15% Rejection (Typical) | < -15 dB |
| *Ftune +/- 20% Rejection (Typical) | < -18 dB |
| Insertion Loss (Typical) | 4.5 dB |
| Impedance (Input /Output) | 50 Ω |
| Tuning Speed | 10 µs |
| Tuning Resolution* | 1 MHz |
| P1dB | +33 dBm |
| IIP3 | +45 dBm |
| Noise Figure | < 0.5 dB above Insertion Loss |
| DC Power | |
| DC Voltage | 3.3 VDC (+0.3 VDC / – 1.0 VDC |
| DC Current Max | 30 mA |
| Operating Temperature Range | -40 to +85°C |
| Control Interface | – SPI Serial Interface |
| Dimensions [L x W x H] | 0.575 x 0.575 x 0.0108 inches
14.605 x 14.605 x 2.7 mm |
Coming soon
