5782-10
The 5782-10 is a single band tunable bandpass filter from Netcom’s TunePro 2W series. It covers 2.5 GHz to 3.0 GHz and tunes in 1 MHz steps in 10 microseconds.
- Specifications
- Mechanical
- Evaluation
| Frequency Range | 2500 to 3000 MHz |
| Available BW | 10% |
| *Ftune +/- 10% Rejection (Typical) | < -10 dB |
| *Ftune +/- 15% Rejection (Typical) | < -14 dB |
| *Ftune +/- 20% Rejection (Typical) | < -18 dB |
| Insertion Loss (Typical) | 3.6 dB |
| Impedance (Input /Output) | 50 Ω |
| Tuning Speed | 10 µs |
| Tuning Resolution* | 1MHz |
| P1dB | +33 dBm |
| IIP3 | +45 dBm |
| Noise Figure | < 0.5 dB above Insertion Loss |
| DC Power | |
| DC Voltage | 3.3 VDC (+0.3 / -1.0 VDC) |
| DC Current Max | 30 mA |
| Operating Temperature Range | -40 to +85°C |
| Control Interface | SPI Serial Interface |
| Dimensions [L x W x H] | 0.575 x 0.575 x 0.108 inches
14.605 x 14.605 x 2.7 mm |
| PIN DESIGNATORS | |||
| PIN Number | Description | PIN Number | Description |
| 1 | RF_IN | 10 | NC |
| 2 | GND | 11 | NC |
| 3 | SPI_CLK | 12 | TUNE_READY |
| 4 | SPI_MOSI | 13 | GND |
| 5 | NC | 14 | RF_OUT |
| 6 | NC | 15 | GND |
| 7 | NC | 16 | VCC (+3.3V) |
| 8 | NC | 17 | SPI_CS |
| 9 | NC | 18 | GND |
|
NC = NO CONNECT |
|||

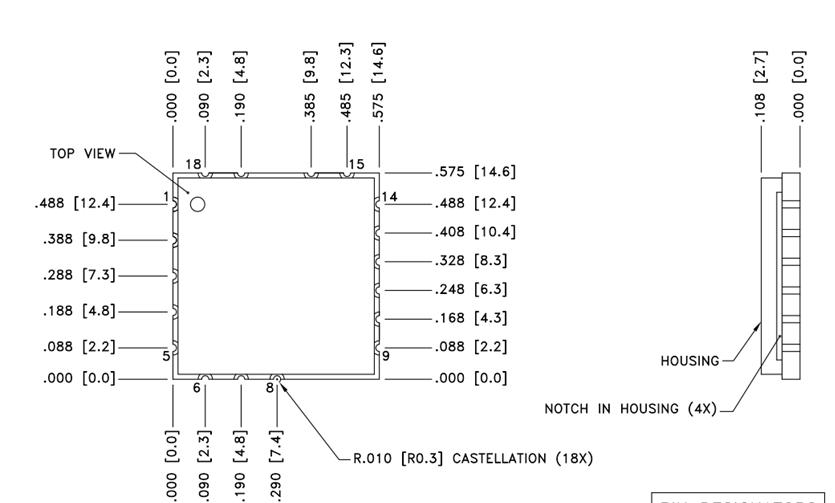

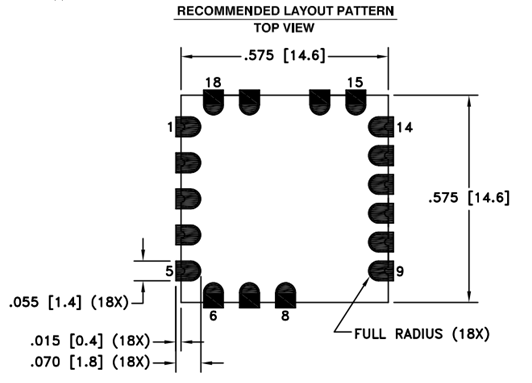

NOTES:
- TOLERANCES ±.010 (0.25) UNLESS OTHERWISE SPECIFIED.
- DIMENSIONS ARE IN INCHES (mm).
The EB567X Evaluation Board is designed to test and evaluate Netcom’s Model 5782-10 Frequency Agile Filter. The evaluation board is used to supply power to the filter, provide tuning control. Facilitate measurement of the filter’s RF parameters. Switching speed and power consumption.
Tuning control of the filter is provided by the EB567X Evaluation Board in the form of frequency tuning control for the 5782-10 uses a USB input and user interface program to provide frequency tuning control for the 5782-10 Frequency Agile Filter. The EB567X Evaluation Board includes a separate RF thru path for calibration of test equipment to improve the accuracy of RF measurements.
