5793
Netcom’s 5793 tunable filter covers the frequency range of 520MHz to 1350MHz.
The filter is a single band tunable filter offering the advantage of small size with a control system comparable to larger size filters.
The 5793 filter has 2 watt power handling capability.
- Specifications
- Mechanical
- Ordering Information
- Evaluation
- Serial Address
Specifications
📡 RF Performance
- Frequency Range: 520 to 1350 MHz
- Bandwidth (Typical): 10%
- Rejection (Typical):
- Ftune ±10%: -10 dB
- Ftune ±15%: -16 dB
- Ftune ±20%: -20 dB
- Insertion Loss (Typical): 4.0dB
- Impedance (Input/Output): 50 Ω
⚙️ Tuning & Linearity
- Tuning Speed: 10 µs
- Tuning Resolution: 1 MHz
- P1dB: +33 dBm
- IIP3 (@ +18 dBm input): +45 dBm
- Noise Figure: < 1.0 dB above Insertion Loss
🔌 Power & Control
- DC Voltage: 3.3 VDC ( +0.3 VDC / -1.0 VDC)
- DC Current (Max): 15ma
- Control Interface: SPI Serial Interface
🌡️ Environmental & Mechanical
- Operating Temperature Range: -40 to +85°C
- Dimensions: 0.575 x 0.575 x 0.108 inches*** / 14.605 x 14.605 x 2.743 mm
Mechanical

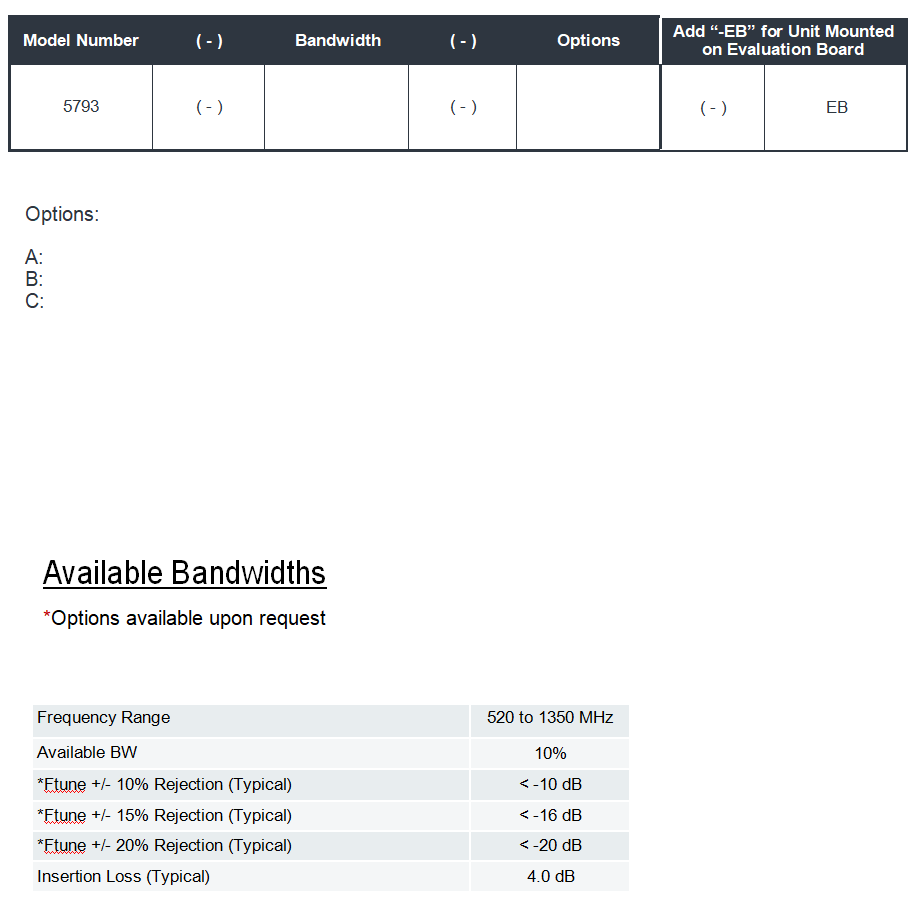

Ordering Information

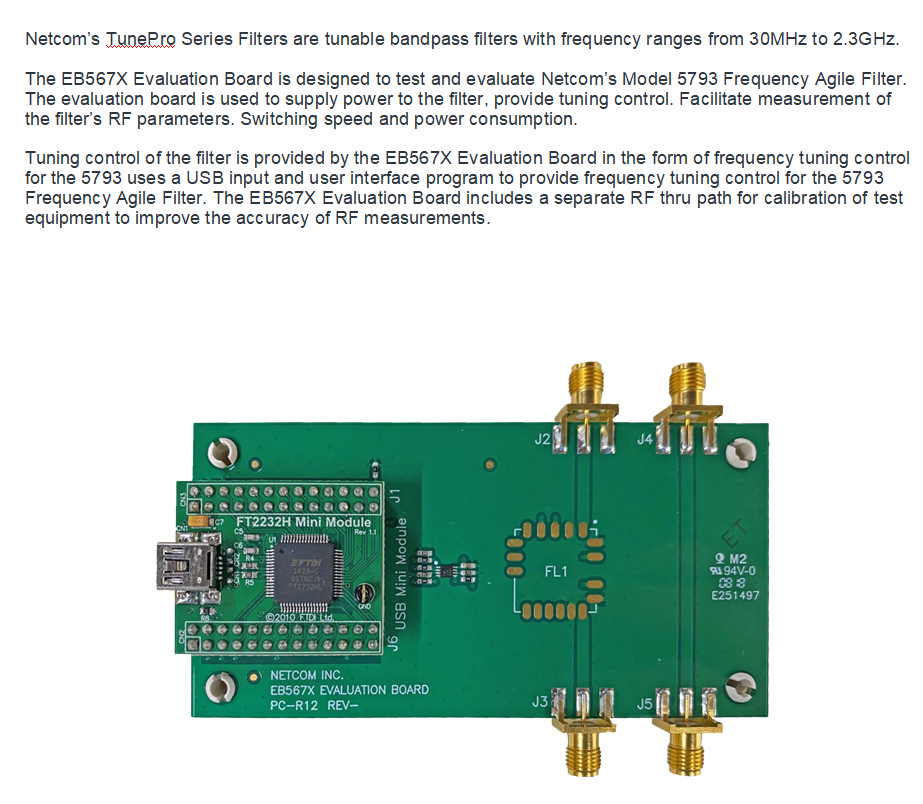

Evaluation

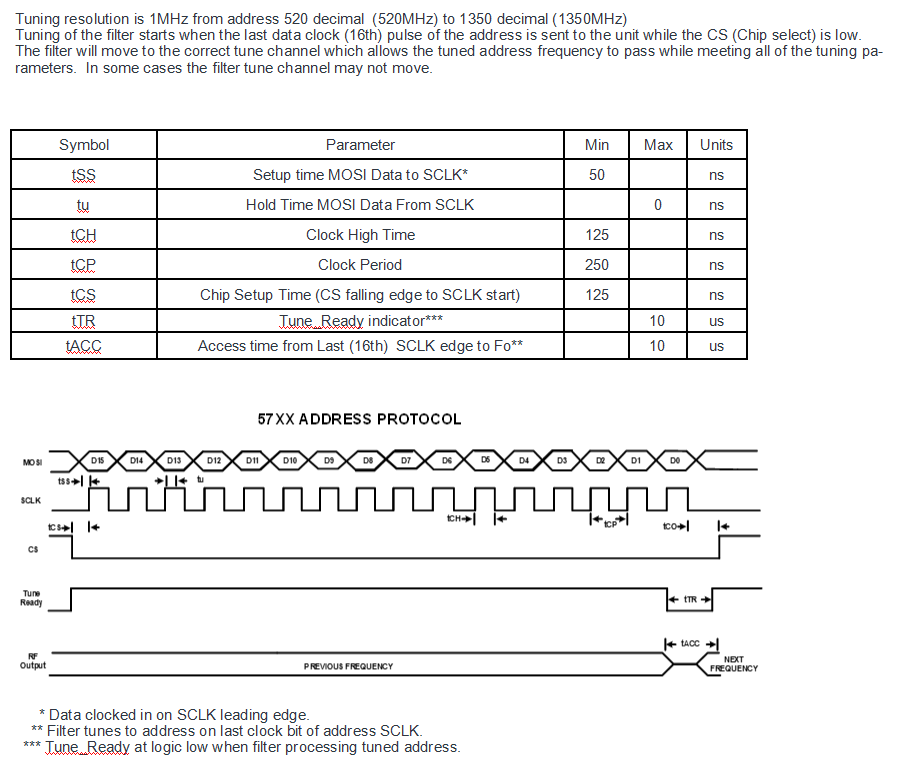

Serial Address
