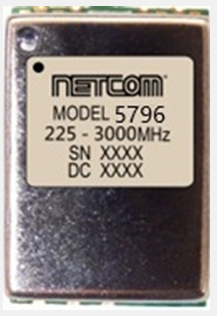

5796
Netcom’s 5796 tunable filter covers the frequency range of 225MHz to 3000MHz.
The filter offers the advantage of small size with a control system comparable to larger size filters.
- Specifications
- Performance
- Mechanical
- Ordering Information
- Evaluation
- Serial Address
Specifications
📡 RF Performance
| Frequency Range | IL Max (dB) | IL Typical (dB) | BW % Typical | 10% Sel Max (dB) | 10% Sel Typical (dB) | 20% Sel Max (dB) | 20% Sel Typical (dB) |
|---|---|---|---|---|---|---|---|
| 225–520 MHz | -5.5 | -4.6 | 10.00 ± 1.60 | -8.4 | -10.5 | -18.5 | -20 |
| 520–870 MHz | -5.9 | -5.2 | 12.00 ± 1.2 | -7 | -8 | -16.3 | -18 |
| 874–1250 MHz | -5.7 | -5.4 | 10.60 ± 1.3 | -8 | -9.5 | -16.6 | -17.6 |
| 1258–2202 MHz | -5.8 | -5.3 | 8.40 ± 3.5 | -7 | -12 | -14.5 | -20 |
| 2222–3002 MHz | -5.3 | -4.7 | 9.70 ± 1.2 | -8 | -10 | -15.2 | -18 |
⚙️ Additional Specs
- VSWR (max): 2.2:1
- Bypass Mode IL: 0.2 dB
- Tuning Speed: < 10 µs
- Tuning Resolution: Varies Per Band
- P1dB: +30 dBm
- Max Power Handling: +33 dBm
- Noise Figure: 2.0 dB above IL
- IIP3: +42 dBm
🔌 Power & Control
- Input Voltage: 2.5 – 3.3 V
- Max Current: 30 mA
- Control Interface: SPI (Serial Interface)
🌡️ Environmental & Mechanical
- Operating Temp Range: -40 to +85°C
- Dimensions: 0.800 x 0.575 x 0.283 inches / 20.320 x 14.605 x 7.112 mm
Performance

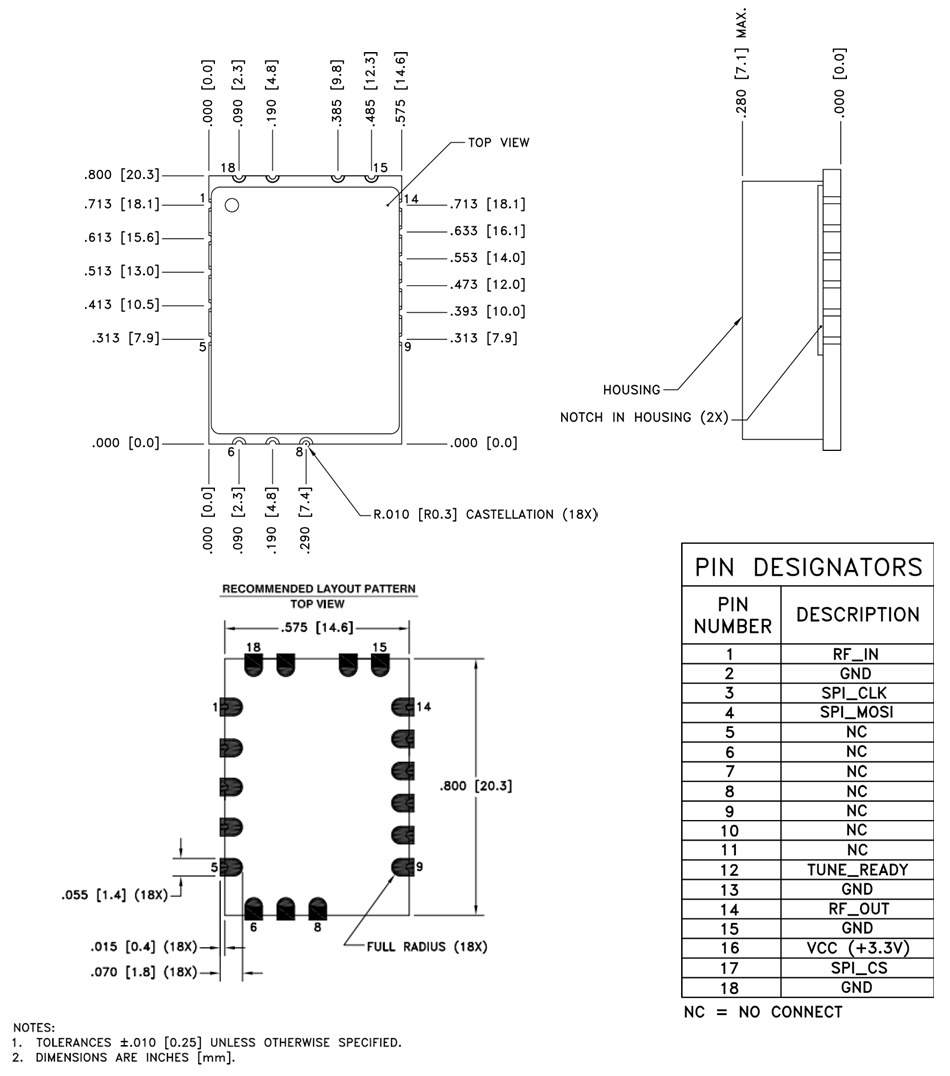

Mechanical
Ordering Information
Evaluation
Coming Soon

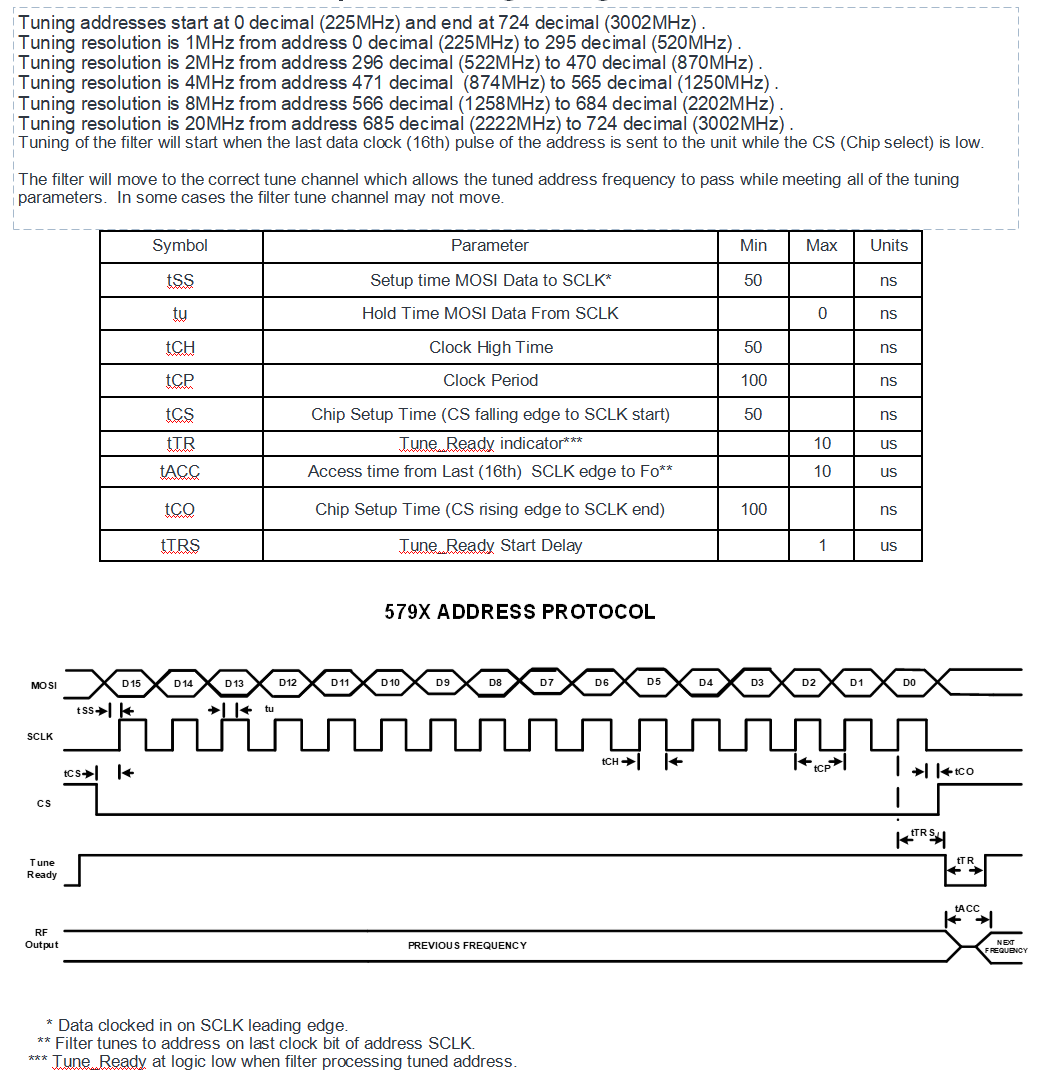

Serial Address
