5900
Netcom’s 5900 is a digitally tunable filter covering the frequency range of 225 to 450MHz.
The 225-450MHz tunable filter design is based on cavity resonators and includes an integrated digital control interface. With its unique design, it offers a high-power and low insertion loss performance in a small package. It has been designed specifically for higher order modulation systems and data applications having a constant 14MHz filter bandwidth over the entire frequency range. The digital control interference is provided to accept either parallel data and strobe or serial data, clock and strobe.
Options are available upon request for different bandwidth, insertion loss and frequency range.
- Specifications
- Performance
- Mechanical
Specifications
| Min | Nominal | Max | |
| Frequency Range | 225Mhz | 450MHz | |
| Tuning Channels | 250 | ||
| Tuning Speed, 90% RF Power | 50 µS | ||
| Input / Output Impedance | 50 Ω | ||
| Input RF Power | 10 W | ||
| Filter Bandwidth | 14 MHz | ||
| Out of Band Rejection | f0 +/- 0dB f0 +/- 12.6 MHz > 6dB f0 +/- 27.4 MHz > 16dB f0 +/- 71 MHz > 31dB |
||
| Insertion Loss | 2.0 dB | 2.33 dB | 4.0 dB |
| VSWR | 1.7:1 | ||
| Inband Third Order Intercept Point | +50 dBm | ||
| Second Harmonic Rejection | 55 dB | ||
| DC Inputs | |||
| +5 Volts | 500 mA | ||
| +200 Volts | 12 mA | ||
| Operating Temperature Range | -40 to +85°C | ||
| RF Connectors | MCX | ||
| Control Interface | – 8 bit Parallel or Serial, 20-pin Connector TTL and CMOS Compatible | ||
| Power Save Mode | Programmable | ||
| Dimensions | 2.7 x 3.0 x 1.2 inches | ||

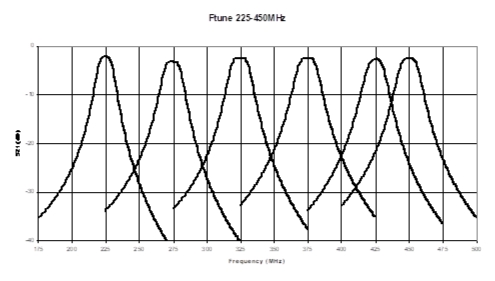

Performance

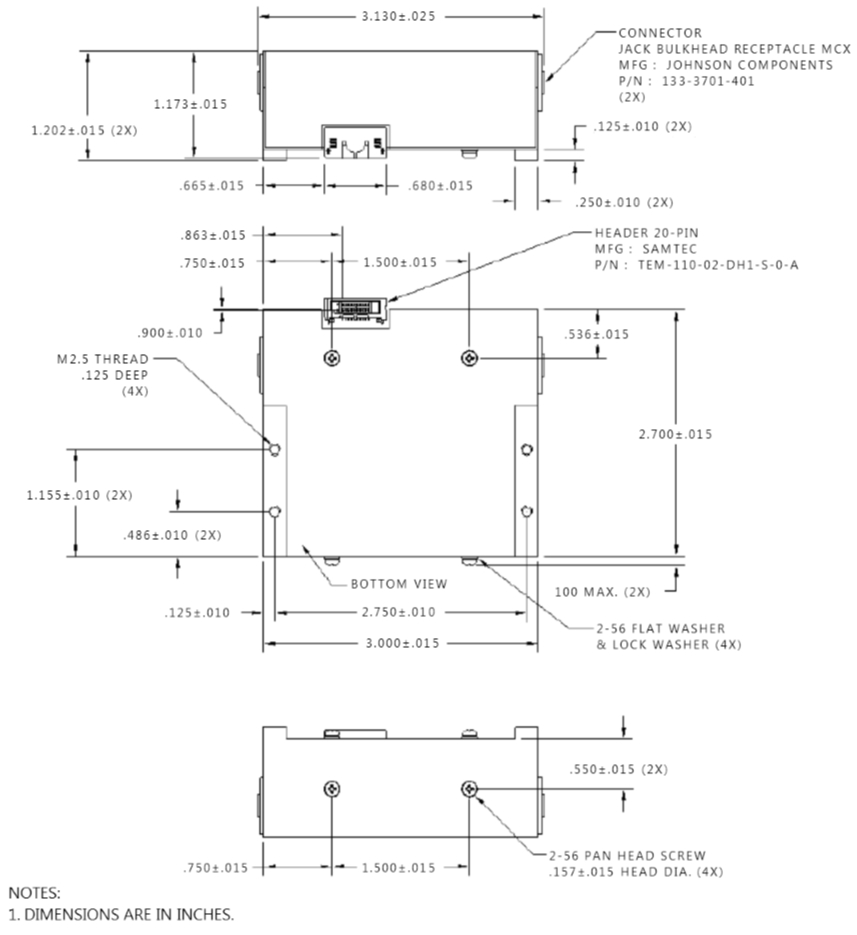

Mechanical
